Straight Shank Double Angle Collet Chucks

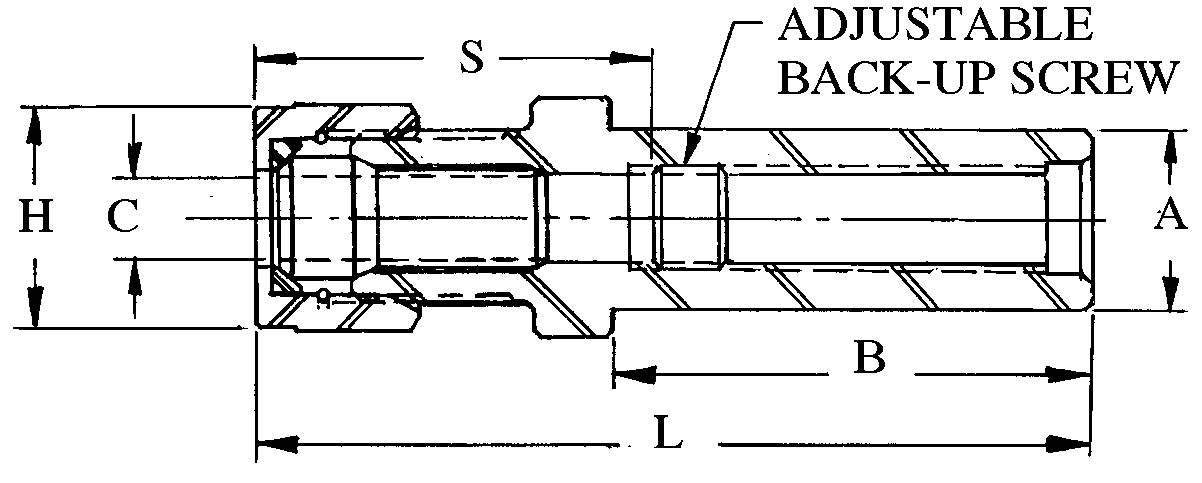

Stub-Nose Double Angle Collet Chucks

Stub-Nose Double Angle Collet Chucks

RECOMMENDED FOR DRILLING AND MILLING
  • UTILIZES AN INDUSTRY STANDARD COLLET SYSTEM
  • COLLETS COLLAPSE TO COVER A 1/32" RANGE
  • ACCURACY TO .0005" T.I.R. OBTAINED BY PRECISION GRINDING
  • COLLETS ARE SELF-RELEASING FOR RAPID, EASY OPERATION
  • UNIQUE ADJUSTABLE STOP SCREW ALLOWS DRILLS TO BE PRESET AND PROVIDES THROUGH COOLANT CAPABILITY
  • GREATER FEEDS AND SPEEDS ARE AVAILABLE BECAUSE OF THE COLLET'S ABILITY TO GRIP ON DRILL MARGINS
  • CHUCK ACCURACY WITH COLLET IS .002 T.I.R. OR BETTER AT 1" FROM NOSE FOR COLLET DIAMETERS 1/8" AND LARGER

COLLET

SERIES

H

HEX

S

MIN/MAX

300

1/2

4"

5.16

11/16

1.5/4.2

SS050DA308516-SOM

300

5/8

4"

5.16

11/16

1.5/4.2

SS062DA308516-SOM

200

5/8

3"

4.69

1"

1.8/4.2

SS062DA208469-SOM

200

5/8

4"

5.69

1"

1.6/4.2

SS062DA208569-SOM

300

3/4

4"

5.16

11/16

1.5/4.2

SS075DA308516-SOM

200

3/4

4"

5.31

1"

1.6/4.1

SS075DA208531-SOM

100

3/4

4"

5.88

1-1/4

1.8/5.3

SS075DA108588-SOM

300

1"

4"

5.16

11/16

1.5/4.2

SS100DA308516-SOM

200

1"

3"

4.31

1"

1.6/3.7

SS100DA208431-SOM

200

1"

4"

5.31

1"

1.6/4.1

SS100DA208531-SOM

100

1"

4"

5.56

1-1/4

1.9/4.9

SS100DA108556-SOM

180

1"

4"

6.38

1-1/2

1.9/5.6

SS100DA188638-SOM

200

1-1/4

4"

5.31

1"

1.62/4.12

SS125DA208531-SOM

100

1-1/4

4"

5.56

1-1/4

1.9/4.9

SS125DA108556-SOM

100

1-1/4

6"

7.56

1-1/4

1.9/5.6

SS125DA108756-SOM

180

1-1/4

6"

7.62

1-1/2

1.9/6.6

SS125DA188762-SOM

400

1-1/4

6"

8.62

2-1/4

2.1/7.7

SS125DA408862-SOM

100

1-1/2

6"

7.56

1-1/4

1.9/5.6

SS150DA108756-SOM

200

1-1/2

4"

5.31

1"

1.6/4.7

SS150DA208531-SOM

200

1-1/2

6"

7.31

1"

1.6/4.1

SS150DA208731-SOM

180

1-1/2

6"

7.62

1-1/2

1.9/6.6

SS150DA188762-SOM

400

1-1/2

6"

8.62

2-1/4

2.1/7.6

SS150DA408862-SOM

180

1-3/4

6"

7.62

1-1/2

1.9/6.7

SS175DA188762-SOM

400

1-3/4

6"

8.06

2-1/4

2.1/7.1

SS175DA408806-SOM

180

2"

6"

7.62

1-1/2

1.9/5.6

SS200DA188762-SOM

400

2"

6"

8.06

2-1/4

2.1/7.1

SS200DA408806-SOM
COLLET C
SERIES COLLET RANGE
100 DA 3/64 TO 9/16
180 DA 3/64 TO 3/4
200 DA 3/64 TO 25/64
300 DA 1/32 TO 1/4
400 DA 3/32 TO 1"

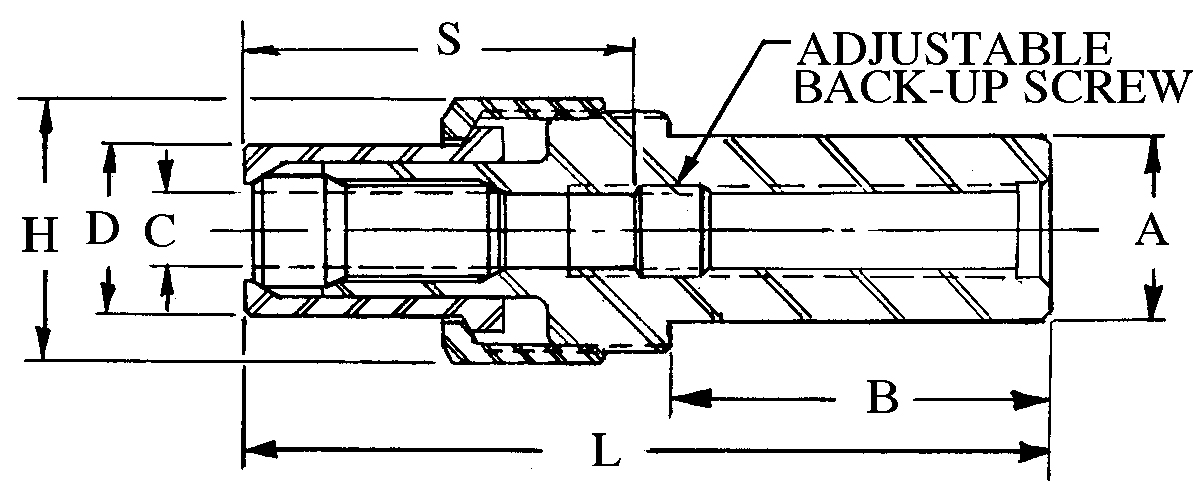

Extended Nose Double Angle Collet Chucks

Extended Nose Double Angle Collet Chucks

RECOMMENDED FOR DRILLING
  • GRIP 1:1
  • THIS STYLE DELIVERS THE BEST ACCURACY OF DA COLLET CHUCKS WITH MAXIMUM CLEARANCE AT THE NOSE
  • ACCURATE DOUBLE-ANGLE DESIGN ENABLES HIGHER-SPEED APPLICATIONS COMPARED TO STUB-NOSE AND CLOSE-CENTER DA STYLES
  • PILOTED LONG NOSEPIECE BEARING AND COMPENSATING LOCKNUT ALLOWS COLLET TO FIND ITS OWN AXIAL POSITION AND PREVENTS COLLET FROM TWISTING
  • FITTED WITH LEFT-HAND THREAD STOP SCREW
  • THROUGH-THE-TOOLHOLDER COOLANT CAPABILITY

COLLET

SERIES

 A

 B

 L

D

DIAMETER

H

HEX

S

MIN/MAX

 CAT. NO.

300

1/2

4"

5.44

1/2

3/4

1.4/4.2

SS050DA301544-SOM

300

5/8

4"

5.44

1/2

3/4

1.4/4.2

SS062DA301544-SOM

300

5/8

1.73

3.19

1/2

3/4

1.4/2.7

SS062DA301319-SOM

200

5/8

4.01

6.00

13/16

1-1/4

1.4/4.2

SS062DA201600-SOM

300

3/4

2"

3.44

1/2

3/4

1.4/3.0

SS075DA301344-SOM

300

3/4

4"

5.44

1/2

3/4

1.4/5.0

SS075DA301544-SOM

200

3/4

4"

6.00

13/16

1-1/4

1.7/4.1

SS075DA201600-SOM

100

3/4

4"

6.50

1-1/16

1-1/2

1.7/5.7

SS075DA101650-SOM

300

1"

4"

5.44

1/2

3/4

1.4/4.2

SS100DA301544-SOM

200

1"

4"

6.00

13/16

1-1/4

1.7/4.1

SS100DA201600-SOM

100

1"

4"

6.50

1-1/16

1-1/2

1.9/5.6

SS100DA101650-SOM

180

1"

4"

6.38

2.02

1-3/4

1.7/5.6

SS100DA181638-SOM

180

1-1/4

6"

8.38

1-5/16

1-3/4

1.7/5.6

SS125DA181838-SOM

200

1-1/2

4"

6.00

13/16

1-1/4

1.7/4.1

SS150DA201600-SOM

180

1-1/2

6"

8.38

1-5/16

1-3/4

1.8/5.6

SS150DA181838-SOM

200

1-1/2

6"

8.00

1.44

1-1/4

1.7/4.1

SS150DA201800-SOM

100

1-1/2

6"

8.50

1.73

1-1/2

1.9/5.6

SS150DA101850-SOM

180

2"

6"

8.38

1-5/16

1-3/4

1.8/5.6

SS200DA181838-SOM
